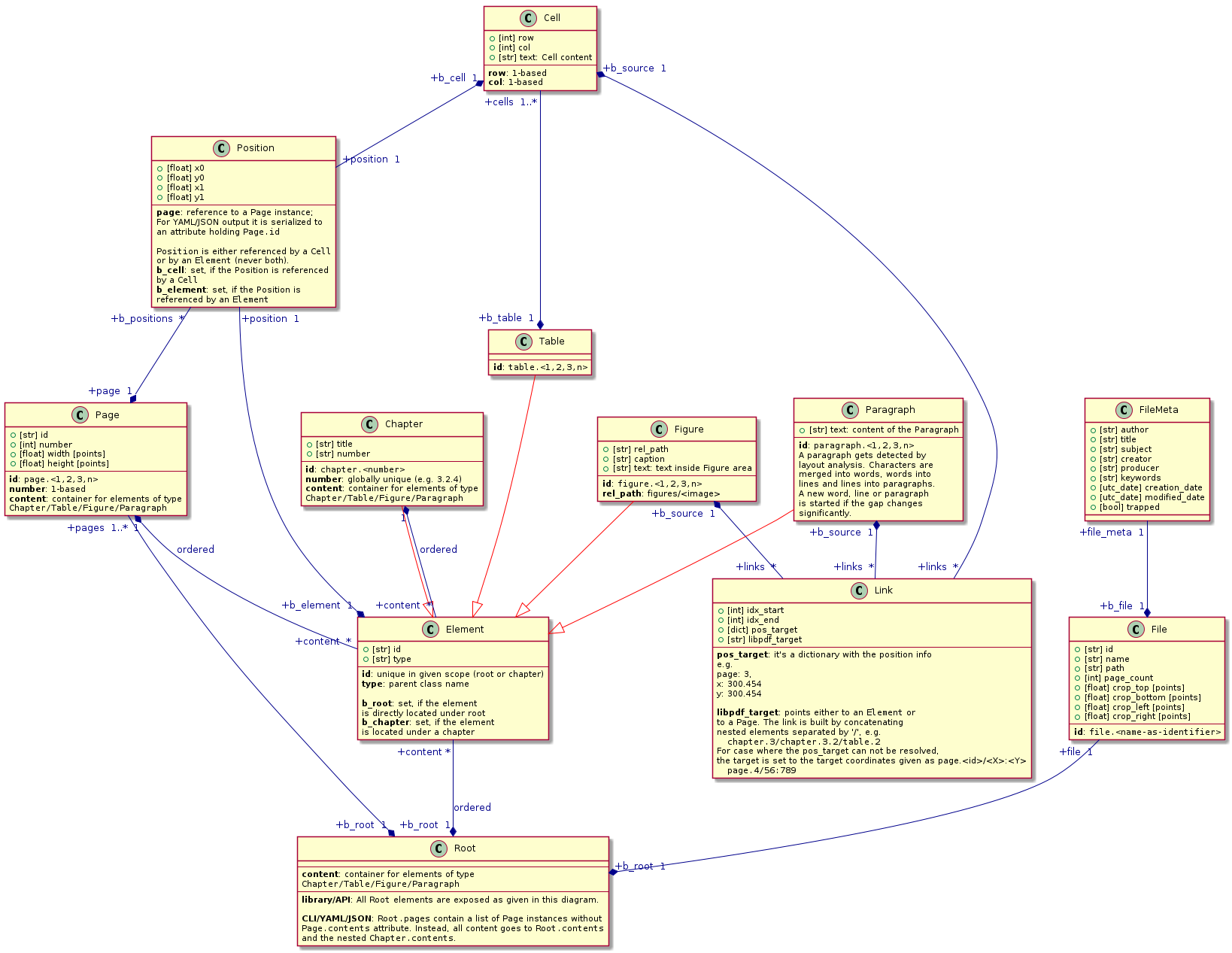

UML PDF model

@startuml skinparam object { AttributeFontSize 11 } ' increase distance between nodes skinparam nodesep 50 ' default arrow color and arrow font color !define COL_ARROW_DEFAULT darkblue skinparam arrowcolor COL_ARROW_DEFAULT skinparam arrowfontcolor COL_ARROW_DEFAULT ' color of arrows showing inheritance !define COL_DERIVE red class Root { -- **content**: container for elements of type ""Chapter/Table/Figure/Paragraph"" -- **library/API**: All ""Root"" elements are exposed as given in this diagram. **CLI/YAML/JSON**: ""Root.pages"" contain a list of ""Page"" instances without ""Page.contents"" attribute. Instead, all content goes to ""Root.contents"" and the nested ""Chapter.contents"". } class Element { + [str] id + [str] type -- **id**: unique in given scope (root or chapter) **type**: parent class name **b_root**: set, if the element is directly located under root **b_chapter**: set, if the element is located under a chapter } class Position { + [float] x0 + [float] y0 + [float] x1 + [float] y1 -- **page**: reference to a ""Page"" instance; For YAML/JSON output it is serialized to an attribute holding ""Page.id"" ""Position"" is either referenced by a ""Cell"" or by an ""Element"" (never both). **b_cell**: set, if the Position is referenced by a ""Cell"" **b_element**: set, if the Position is referenced by an ""Element"" } class File { + [str] id + [str] name + [str] path + [int] page_count + [float] crop_top [points] + [float] crop_bottom [points] + [float] crop_left [points] + [float] crop_right [points] -- **id**: ""file.<name-as-identifier>"" } class FileMeta { + [str] author + [str] title + [str] subject + [str] creator + [str] producer + [str] keywords + [utc_date] creation_date + [utc_date] modified_date + [bool] trapped } class Page { + [str] id + [int] number + [float] width [points] + [float] height [points] -- **id**: ""page.<1,2,3,n>"" **number**: 1-based **content**: container for elements of type ""Chapter/Table/Figure/Paragraph"" } class Link { + [int] idx_start + [int] idx_end + [dict] pos_target + [str] libpdf_target -- **pos_target**: it's a dictionary with the position info e.g. page: 3, x: 300.454 y: 300.454 **libpdf_target**: points either to an ""Element"" or to a ""Page"". The link is built by concatenating nested elements separated by '/', e.g. "" chapter.3/chapter.3.2/table.2"" For case where the pos_target can not be resolved, the target is set to the target coordinates given as page.<id>/<X>:<Y> "" page.4/56:789 "" } class Paragraph { + [str] text: content of the Paragraph -- **id**: ""paragraph.<1,2,3,n>"" A paragraph gets detected by layout analysis. Characters are merged into words, words into lines and lines into paragraphs. A new word, line or paragraph is started if the gap changes significantly. } class Chapter { + [str] title + [str] number -- **id**: ""chapter.<number>"" **number**: globally unique (e.g. 3.2.4) **content**: container for elements of type ""Chapter/Table/Figure/Paragraph"" } class Cell { + [int] row + [int] col + [str] text: Cell content -- **row**: 1-based **col**: 1-based } class Table { -- **id**: ""table.<1,2,3,n>"" } class Figure { + [str] rel_path + [str] caption + [str] text: text inside Figure area -- **id**: ""figure.<1,2,3,n>"" **rel_path**: figures/<image> } Paragraph "+b_source 1" *-- "+links *" Link Figure "+b_source 1" *-- "+links *" Link Cell "+b_source 1" *-- "+links *" Link Cell "+cells 1..*" --* "+b_table 1" Table Cell "+b_cell 1" *-- "+position 1" Position Table -[#COL_DERIVE]-|> Element Figure -[#COL_DERIVE]-|> Element Chapter -[#COL_DERIVE]-|> Element Paragraph -[#COL_DERIVE]-|> Element Chapter "1" *-- "+content *" Element: ordered Page "1" *-- "+content *" Element: ordered ' all root structures derive from Element Position "+position 1" --* "+b_element 1" Element Element "+content *" --* "+b_root 1" Root: ordered File "+file 1" --* "+b_root 1" Root Page "+pages 1..*" --* "+b_root 1" Root Position "+b_positions *" --* "+page 1" Page FileMeta "+file_meta 1" --* "+b_file 1" File @enduml
